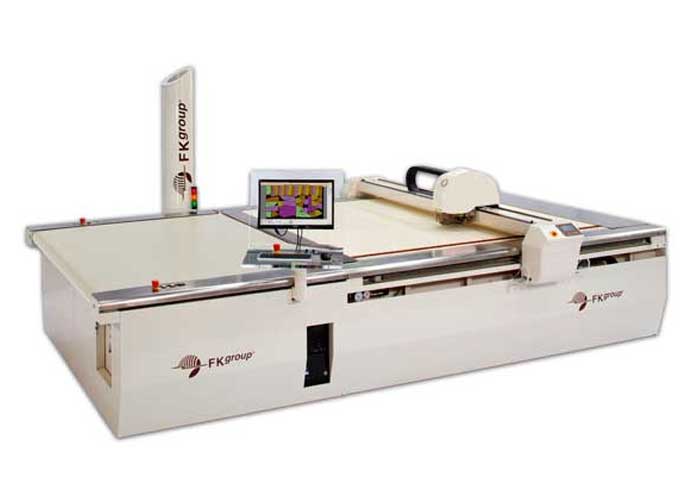

Innovative automatic cutting system, Conveyor type for lays up to 2,5cm compressed height.
TopCut 2,5 is the ideal solution for small and medium size productions, able to cut fast all kinds of fabrics allowing to drastically reduce energy consumption with substantial production cost reduction.
The compact and refined styling makes it perfect for any work environment.
“EVO CUT”: the simple and intuitive Software makes all cutting parameters setting fast and safe.
To complete all the characteristics that make TopCut 2,5 unique, there is the remote technical assistance, via WEB, that ensures just in time total and constant support to the operator, thus allowing working in complete peace of mind.
| Working Area (cm) Height x Length |
180×180 | 200×180 | 250×180 |
| Overall dimensions (mm) Length x Width x Height |
4059×2836 x2140 |
4059×3036 x2140 |
4059×3536 x2140 |
| Weight (Kg) | 2200 | 2350 | 2650 |
| Installed Power (kW) | 11 | ||
| Average Consumption (kW) | 5 | 5 | 7 |
| Power Supply Tension | 400V±10% | ||
| Max compressed lay heigth (cm) | 2,5 | ||
