Product Description
Electrical Supply | 390v – 50 Hz |
Electrical Power | 5 Kw |
Pneumatic Supply | 7 Bar |
Air Consumption | 1 l/pc |
Packing | 310x125x170h cm |
Weight | 555 Kg |

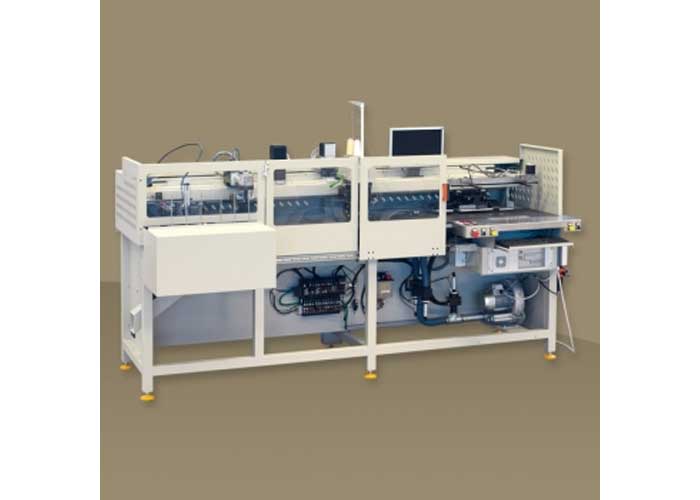

The UAM 03 is a machine for sewing collars and cuffs, completed with a MAICA lock stitch sewing machine, with sewn cuff trimming.
It is a totally electronic controlled unit managed by a software that allows the sewing of any type of stitch with automatic size changing.?To change the model simply replace the low cost and easily made fabric holding plates.?Collar and cuff trimming is performed separately from the sewing phase: a different cut can be made, compared to the stitching.
Electrical Supply | 390v – 50 Hz |
Electrical Power | 5 Kw |
Pneumatic Supply | 7 Bar |
Air Consumption | 1 l/pc |
Packing | 310x125x170h cm |
Weight | 555 Kg |
